RN2005 Silicon PNP Transistor

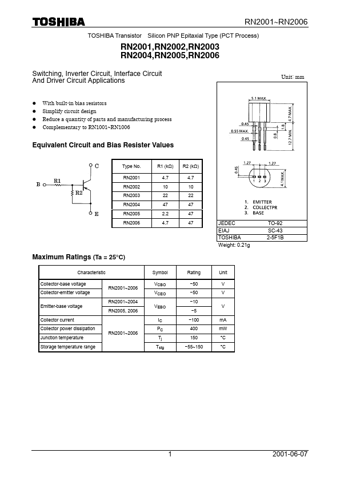

RN2001~RN2006 TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT Process) RN2001,RN2002,RN2003 RN2004,RN2005,RN2006 Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications l l l l With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process Complementary to RN1001~RN1006 Unit: mm Equivalent Circuit and Bias Resister Values Type No. RN2001 RN2002 RN2003 RN2004 RN2005 RN2006 R1 (kΩ) 4.7 10 22 47 2.2 4.7 R2 (kΩ) 4.7 10 22 47 47 4.

RN2005_ToshibaSemiconductor.pdf
