TA1201CN - I2C BUS CONTROL NTSC 1CHIP COLOR TV IC

TA1201CN Description

TA1201CN TOSHIBA BIPOLAR LINEAR INTEGRATED CIRCUIT SILICON MONOLITHIC TA1201CN I2C BUS CONTROL NTSC 1CHIP COLOR TV IC TA1201CN provides PIF, SIF, Vid.

TA1201CN Features

* l PIF Circuit
* PLL Type IF Demodulation (Bus alignment)
* Adjustment Free AFT without Tank Coil
* RF AGC Output (Delay point : Bus alignment)
* Dual Time Constant Fast AGC l Video Circuit
* Black Stretcher
* DC Restoration Circuit
* D. L. Aperture Compensate Circuit (Bus

📥 Download Datasheet

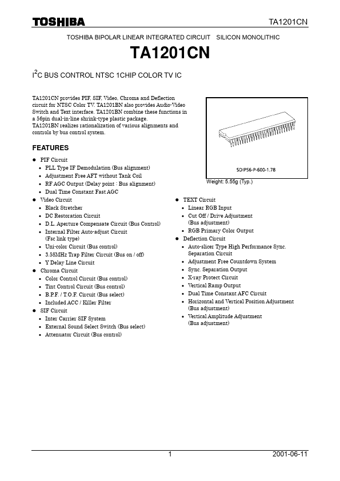

Preview of TA1201CN PDF
