TB6613FTG Datasheet - Toshiba

TB6613FTG BiCD Integrated Circuit Silicon Monolithic

TB6613FTG TOSHIBA BiCD Integrated Circuit Silicon Monolithic TB6613FTG DC and Stepping Motor Driver The TB6613FTG is a DC motor driver IC using LDMOS output transistors with low ON-resistance. The TB6613FTG incorporates five PWM constant-current H-bridge drivers, of which four drivers can be used for micro stepping motor drives of up to two stepping motors. The TB6613FTG is best suited to control various lens actuators in digital still cameras. The three-wire serial interface provides control o.

TB6613FTG Features

* Motor power supply voltage: VM ≤ 6 V (max) Control power supply voltage: VCC = 3 V to 5.5 V Output current: IOUT ≤ 0.8 A (max) Complementally P- and N-channel LDMOS output transistors Output ON-resistance: RON (upper and lower sum) = 1.5 Ω (@VM = VCC

TB6613FTG Datasheet (460.35 KB)

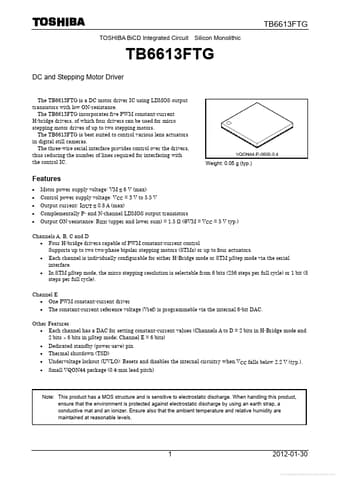

Preview of TB6613FTG PDF
TB6613FTG Datasheet Preview Page 2 TB6613FTG Datasheet Preview Page 3

Datasheet Details

Part number:

TB6613FTG

Manufacturer:

Toshiba ↗

File Size:

460.35 KB

Description:

Bicd integrated circuit silicon monolithic.
