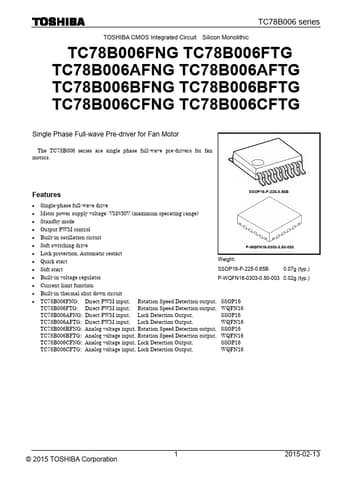

TC78B006AFTG, TC78B006FNG, Single Phase Full-wave Pre-driver

* FNG/FTG Direct PWM input (TSP), Rotation speed detection output (FG) type Pin No.

FNG 14 13 12 3 11 15 16 2 1 4 5 6 7 8 9 10 FTG 12 11 10 1 9 13 14 16 15 2 3 4 5 6 7 8 Pin name Description VREG HP HM VM GND OUT1P OUT1N OUT2P OUT2N OC FG TSP VMI VSOFT CT SS Output pin for reference volt

TC78B006AFTG Features

* SSOP16-P-225-0.65B

* Single-phase full-wave drive

* Motor power supply voltage: VM=30V (maximum operating range)

* Standby mode

* Output PWM control

* Built-in oscillation circuit

* Soft switching drive

* Lock protection, Automatic resta
