TC78B002FNG Datasheet - Toshiba Semiconductor

Single Phase Full-wave Driver

TC78B002FNG Features

* Single-phase full-wave drive

* Motor power supply voltage: VM =16V (maximum operating range)

* Output current: Iout = 1.5A (max.)

* PWM control

* Built-in oscillation circuit (External resistor)

* Soft switching drive

* Lock protection, Autom

TC78B002FNG General Description

Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Pin name VREG HP HM OSCR RDO OUT1 GND RS VM OUT2 FG VSP VOFF LA VMI VSOFT TC78B002FNG Description Output pin for reference voltage of 5 V Hall signal input pin + Hall signal input pin－ Connection pin for resistor of oscillation circuit Output pin for .

TC78B002FNG Datasheet (730.89 KB)

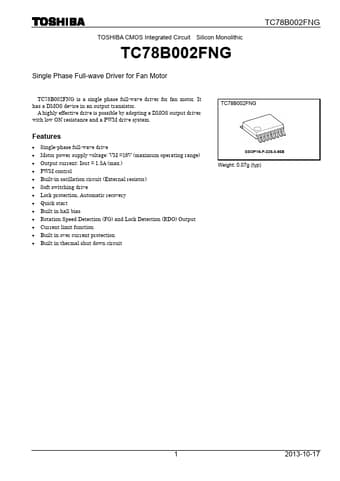

TC78B002FNG Datasheet Preview — Preview of TC78B002FNG PDF

Datasheet Details

Part number:

TC78B002FNG

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

730.89 KB

Description:

Single phase full-wave driver.
TOSHIBA CMOS Integrated Circuit Silicon Monolithic TC78B002FNG Single Phase Full-wave Driver for Fan Motor TC78B002FNG TC78B002FNG is a single phase.
