TC78B006BFTG, TC78B006FNG Single Phase Full-wave Pre-driver

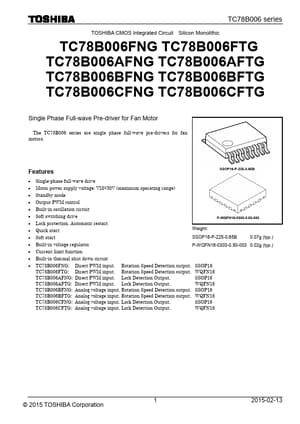

TC78B006 series TOSHIBA CMOS Integrated Circuit Silicon Monolithic TC78B006FNG TC78B006FTG TC78B006AFNG TC78B006AFTG TC78B006BFNG TC78B006BFTG TC78B00.
FNG/FTG Direct PWM input (TSP), Rotation speed detection output (FG) type Pin No.

TC78B006FNG-Toshiba.pdf

TC78B006BFTG Datasheet Preview — This datasheet PDF includes multiple part numbers: TC78B006BFTG, TC78B006FNG. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TC78B006BFTG, TC78B006FNG

Manufacturer:

Toshiba ↗

File Size:

0.97 MB

Description:

Single Phase Full-wave Pre-driver

Note:

This datasheet PDF includes multiple part numbers: TC78B006BFTG, TC78B006FNG.
Please refer to the document for exact specifications by model.

Features

* SSOP16-P-225-0.65B
* Single-phase full-wave drive
* Motor power supply voltage: VM=30V (maximum operating range)
* Standby mode
* Output PWM control
* Built-in oscillation circuit
* Soft switching drive
* Lock protection, Automatic resta
