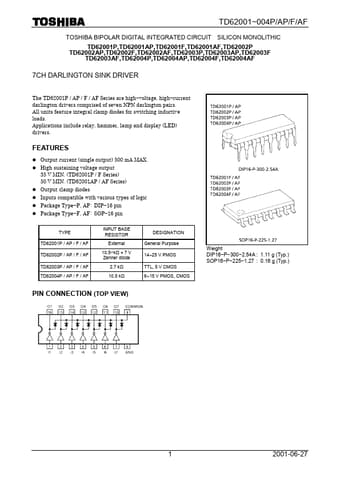

TD62001P - 7CH DARLINGTON SINK DRIVER

Toshiba

Datasheet Details

l Output current (single output) 500 mA MAX. l High sustaining voltage output 35 V MIN. (TD62001P / F Series) 50 V MIN. (TD62001AP / AF Series) l Output clamp diodes l Inputs compatible with various types of logic l Package Type.
P, AP: DIP.
16 pin l Package Type.
F, AF: SOP.
16 pin TYPE TD62001P / AP / F / AF TD62002P / AP / F / AF TD62003P / AP / F / AF TD62004P / AP / F / AF INPUT BASE.
