TLP2108 - Photocoupler

Toshiba

📥 Download Datasheet

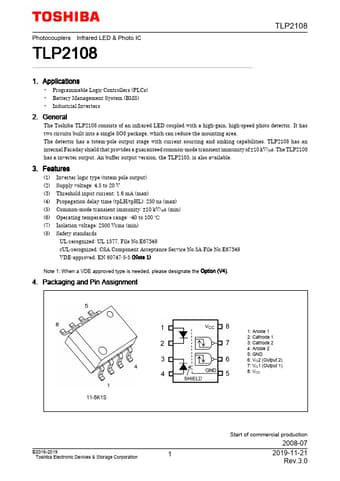

TLP2108 Datasheet Preview — Preview of TLP2108 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TLP2108
Manufacturer	Toshiba ↗
File Size	408.01 KB
Description	Photocoupler
Datasheet	TLP2108-Toshiba.pdf

TLP2108 Product details

Features

(1) Inverter logic type (totem pole output) (2) Supply voltage: 4.5 to 20 V (3) Threshold input current: 1.6 mA (max) (4) Propagation delay time (tpLH/tpHL): 250 ns (max) (5) Common-mode transient immunity: ±10 kV/µs (min) (6) Operating temperature range: -40 to 100  (7) Isolation voltage: 2500 Vrms (min) (8) Safety standards UL-recognized: UL 1577, File No. E67349 cUL-recognized: CSA Component Acceptance Service No.5A File No. E67349 VDE-approved: EN 60747-5-5 (Note 1) Note 1: When a VDE approve.
