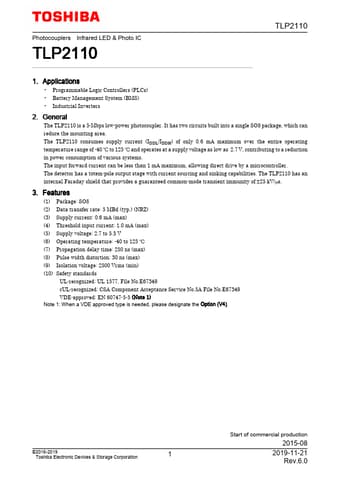

Photocouplers Infrared LED & Photo IC TLP2110 TLP2110 1. Applications Programmable Logic Controllers (PLCs) Battery Management System (BMS) Industrial Inverters 2. General The TLP2110 is a 5-Mbps low-power photocoupler. It has two circuits built into a single SO8 package, which can reduce the mounting area. The TLP2110 consumes supply current (IDDL/IDDH) of only 0.6 mA maximum over the entire operating temperature range of -40  to 125  and operates at a supply v.

TLP2110 Features

* (1) Package: SO8 (2) Data transfer rate: 5 MBd (typ.) (NRZ) (3) Supply current: 0.6 mA (max) (4) Threshold input current: 1.0 mA (max) (5) Supply voltage: 2.7 to 5.5 V (6) Operating temperature: -40 to 125  (7) Propagation delay time: 250 ns (max) (8) Pulse width distortion: 30 ns (max) (9) Isolati
