TOSHIBA PHOTOCOUPLER IRED & PHOTO-IC TLP2118 TLP2118 PDP (Plasma Display Panel) FA (Factory Automation) Interfaces of measuring and control instruments Unit: mm The Toshiba TLP2118 consists of an infrared emitting diodes and integrated high-gain, high-speed photodetectors.

The TLP2118 is housed in the SO8 package.

Since the TLP2118 contains two photocouplers, it saves board space.

The photodetector has an open-collector output stage.

The photodetector has an internal Faraday shield that prov

TLP2118-Toshiba.pdf

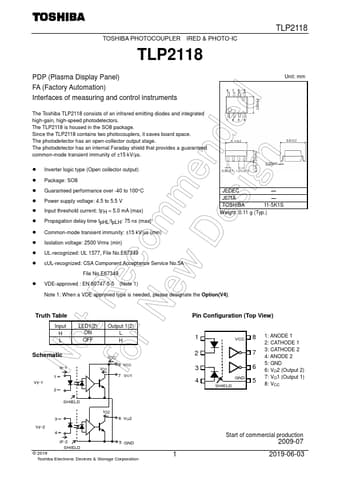

Preview of TLP2118 PDF
