TMP4321AP

single chip microcomputer

TMP4321AP Features

* o Software compatible with TLCS43 series o ROM capacity: 2048W x 8 Bits o RAM capacity: l28W x 4 Bits 0 Instruction executing rate: 4 llS 0 Input ports: 3 x 4 Bits 0 Input/output ports: 2 x 4 Bits PIN CONNECTIONS 0 Output ports: 3 x 4 Bits x 3 Bits o Interrupt level: 1 level (Interrupt by tim

TMP4321AP General Description

TMP432lAP is one version of single-chip microcomputer TLCS43 series processed with NMOS. Since TMP4321AP can make periodic interrupt gained by dividing the CPU clock to 512 or 1024 using the built-in prescaler, it is most appropriate for computer control, such as sequence control. Refer to the techn.

TMP4321AP Datasheet (240.64 KB)

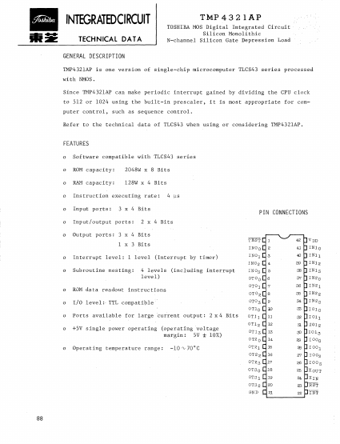

Preview of TMP4321AP PDF

Datasheet Details

Part number:

TMP4321AP

Manufacturer:

Toshiba ↗

File Size:

240.64 KB

Description:

Single chip microcomputer.


* INTEGRATEDCIRCUIT iii :.: TECHNICAL DATA TMP4321AP TOSHIBA MOS Digital Integrated Circuit Silicon Monolithic N-channel Silicon Gate Depress.
