TMPM3H5FWFG Datasheet - Toshiba

TMPM3H5FWFG CMOS Digital Integrated Circuit Silicon Monolithic

* Arm ® Cortex®-M3 core. Operation frequency: 1 to 40 MHz. Operation voltage: 2.7 to 5.5V * Code flash: 32 to 128KB. Data flash: 8 to 32KB. * Package: 32-pin to 100-pin. 11 types of packages are available. VQFN48 6×6mm 0.4mm pitch LQFP32 7x7mm 0.8mm pitch LQFP48 7x7mm 0.5mm pitch LQFP44.

TMPM3H5FWFG Features

* Arm Cortex-M3 core ‒ Operation frequency: 1 to 40 MHz ‒ Memory Protection Unit (MPU)

* Low-power consumption mode ‒ Operation voltage: 2.7 to 5.5V ‒ 100µA/MHz (at basic operation) ‒ Low-power consumption operation: IDLE, STOP1,STOP2

* Operation temperature: -40 to +85°C

* Int

TMPM3H5FWFG Datasheet (1.66 MB)

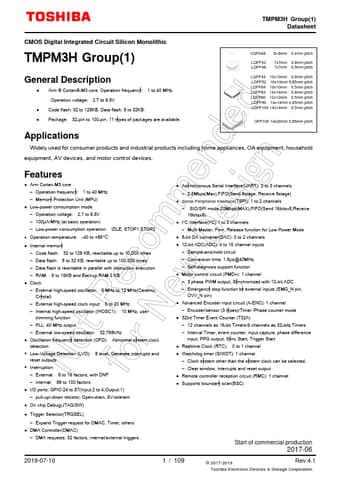

Preview of TMPM3H5FWFG PDF
TMPM3H5FWFG Datasheet Preview Page 2 TMPM3H5FWFG Datasheet Preview Page 3

Datasheet Details

Part number:

TMPM3H5FWFG

Manufacturer:

Toshiba ↗

File Size:

1.66 MB

Description:

Cmos digital integrated circuit silicon monolithic.
