TPCA8088 - Field Effect Transistor

Product Overview

Toshiba

Part number	TPCA8088
Manufacturer	Toshiba
File Size	255.63 KB
Description	Field Effect Transistor
Datasheet	TPCA8088 Datasheet

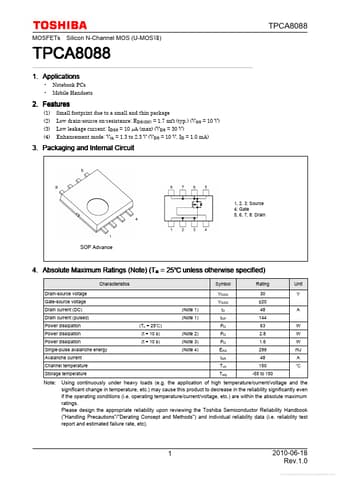

Additional preview pages of the TPCA8088 datasheet.

(1) (2) (3) (4) Small footprint due to a small and thin package Low drain-source on-resistance: RDS(ON) = 1.7 mΩ (typ. ) (VGS = 10 V) Low leakage current: IDSS = 10 µA (max) (VDS = 30 V) Enhancement mode: Vth = 1.3 to 2.3 V (VDS = 10 V, ID = 1.0 mA) 3. Packaging and Internal Circuit 1, 2, 3: Source 4: Gate 5, 6, 7, 8: Drain SOP Advance 4. Absolute Maximum Ratings (Note) (Ta = 25 unless otherwise specified) Characteristics Drain-source voltage Gate-source voltage Drain current (DC) Drain curr.
