RF-500TB-18280-MV Datasheet - Transmotec

RF-500TB-18280-MV DC Motor

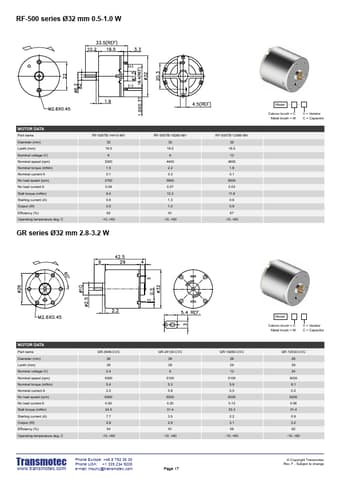

RF-500series Ø32 mm 0.5-1.0 W MODEL NO. DESIGNATIONS MOTOR DATA Part name Diameter (mm) Lenth (mm) Nominal voltage (V) Nominal speed (rpm) Nominal torque (mNm) Nominal current A No load speed (rpm) No load current A Stall torque (mNm) Starting current (A) Output (W) Efficiency (%) Operating temperature deg. C RF-500TB-14415-MV 32 19.5 6 3000 1.5 0.1 3700 0.04 8.4 0.6 0.5 62 -10..+60 GR series Ø32 mm 2.8-3.2 W RF-500TB-18280-MV 32 19.5 6 4400 2.2 0.3 5600 0.07 12.3 1.3 1.0 61 -10..+60 RF-.

RF-500TB-18280-MV Datasheet (131.14 KB)
