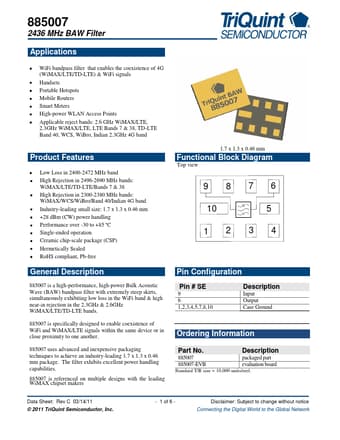

Description
885007 is a high-performance, high-power Bulk Acoustic Wave (BAW) bandpass filter with extremely steep skirts, simultaneously exhibiting low loss in the WiFi band & high near-in rejection in the 2.3GHz & 2.6GHz WiMAX/LTE/TD-LTE bands.
Features
- Low Loss in 2400-2472 MHz band High Rejection in 2496-2690 MHz bands: WiMAX/LTE/TD-LTE/Bands 7 & 38 High Rejection in 2300-2380 MHz bands: WiMAX/WCS/WiBro/Band 40/Indian 4G band Industry-leading small size: 1.7 x 1.3 x 0.46 mm +28 dBm (CW) power handling Performance over -30 to +85 ºC Single-ended operation Ceramic chip-scale package (CSP) Hermetically Sealed RoHS compliant, Pb-free
Functional Block Diagram
Top view
9 10
www. DataSheet. net/
8
7
6 5
1
2
3
4
General.
