2437 MHz BAW Filter

885070 Features

* Industry leading small size: 1.70 x 1.30 x 0.46 mm

* Performance over

*  40 to + 95º C

* High Rejection at 2390 MHz, 2483.5 MHz, B38/B40/B7/B41

* Ceramic chip-scale Package (CSP)

* Hermetically sealed

* RoHS compliant, Pb-free Pb CSP-17

885070 General Description

The 885070 is a high-performance, high power Bulk Acoustic Wave (BAW) band-pass filter with extremely steep skirts, simultaneously exhibiting low loss in the WiFi band and high rejection in the b.

885070 Datasheet (408.34 KB)

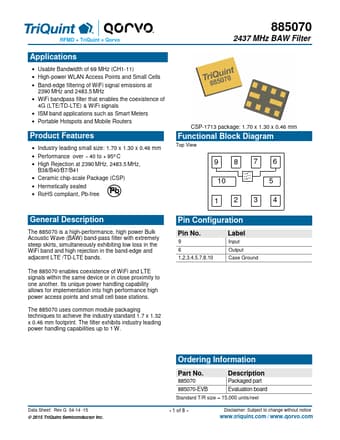

Preview of 885070 PDF

Datasheet Details

Part number:

885070

Manufacturer:

qorvo

File Size:

408.34 KB

Description:

2437 mhz baw filter.
RFMD + TriQuint = Qorvo 885070 2437 MHz BAW Filter Applications

* Usable Bandwidth of 69 MHz (CH1-11)

* High-power WLAN Access Poin.
