TGC4402-SM Datasheet - TriQuint Semiconductor

TGC4402-SM - 18 - 26 GHz Packaged Upconverting Mixer

www.DataSheet.net/ The TGC4402-SM upconverting mixer is designed to support a variety of millimeter wave applications including point-to-point digital radio and K band Sat-Com. The TGC4402-SM provides 9 dB nominal conversion loss across 18-26 GHz . Typical LO input drive is 19 dBm across the band. .

TGC4402-SM Features

* RF Output Frequency Range: 18 - 26 GHz IF Input Frequency Range: 0.5

* 3 GHz Conversion Loss: 9 dB Input TOI: 18 dBm LO Input Power: 19 dBm Bias: Vmxr = -0.9 V Package Dimensions: 4 x 4 x 0.9 mm Measured Performance Bias

TGC4402-SM_TriQuintSemiconductor.pdf

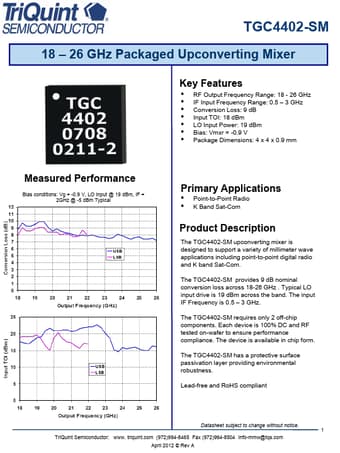

TGC4402-SM Datasheet Preview — Preview of TGC4402-SM PDF

Datasheet Details

Part number:

TGC4402-SM

Manufacturer:

TriQuint Semiconductor

File Size:

564.50 KB

Description:

18 - 26 ghz packaged upconverting mixer.
