TGC4403 Datasheet, Amplifier, TriQuint Semiconductor

TGC4403 Features

  • Amplifier
  • RF Output Frequency Range: 16-30 GHz Input Frequency Range: 8 - 15 GHz 22 dBm Nominal Pout 20 dB Gain 10

PDF File Details

Part number:

TGC4403

Manufacturer:

TriQuint Semiconductor

File Size:

454.22kb

Download:

📄 Datasheet

Description:

8 - 15 doubler with amplifier. The TriQuint TGC4403 MMIC combines a frequency doubler with a 3-stage amplifier, operating at input frequencies of 8 - 15 GHz. With g

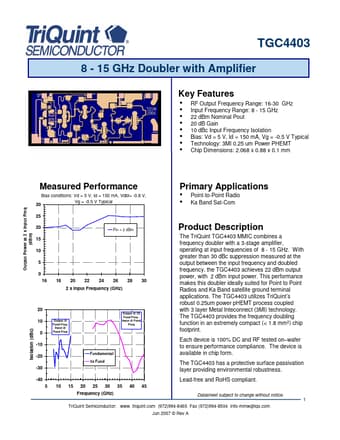

Datasheet Preview: TGC4403 📥 Download PDF (454.22kb)
Page 2 of TGC4403 Page 3 of TGC4403

TGC4403 Application

  • Applications
  • Point-to-Point Radio Ka Band Sat-Com Bias conditions: Vd = 5 V, Id = 150 mA, Vdbl= -0.8 V, Vg = -0.5 V Typical 25
