TGC4405 Datasheet - TriQuint Semiconductor

TGC4405 17 - 27 GHz Upconverter

www.DataSheet.net/ Upper Side Band Lower Side Band The TriQuint TGC4405 is a multifunction chip. It is an upconverter with RF output frequencies of 17 to 27 GHz. It contains a frequency doubler and local oscillator (LO) amplifier, operating at LO Input frequencies of 8 - 13 GHz. The part is design.

TGC4405 Features

* RF Output Frequency Range: 17 - 27 GHz LO Input Frequency Range: 8 -13 GHz IF Input Frequency Range: 0.5 - 3 GHz 13 dB Conversion Gain 28 dBm OTOI 30 dBc LO Isolation Bias: Vd = 5 V, Idq = 425 mA, Vg = -0.5 V T

TGC4405_TriQuintSemiconductor.pdf

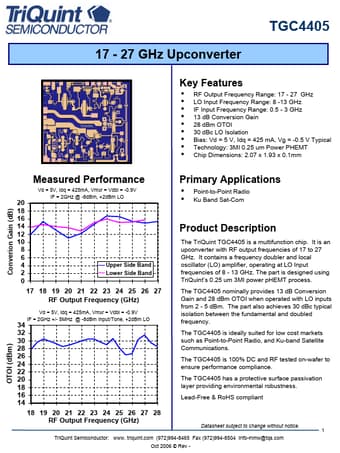

Preview of TGC4405 PDF
TGC4405 Datasheet Preview Page 2 TGC4405 Datasheet Preview Page 3

Datasheet Details

Part number:

TGC4405

Manufacturer:

TriQuint Semiconductor

File Size:

509.22 KB

Description:

17 - 27 ghz upconverter.
