HC-SR505 PIR Motion Module

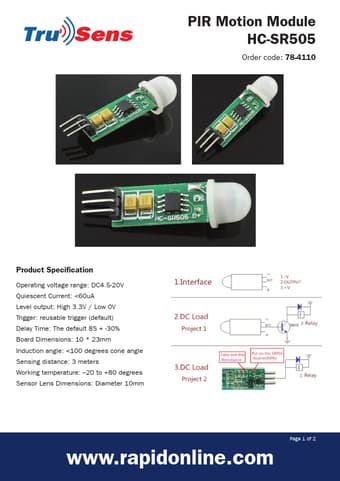

PIR Motion Module HC-SR505 Order code: 78-4110 Product Specification Operating voltage range: DC4.5-20V Quiescent Current: <60uA Level output: High 3.3V / Low 0V Trigger: reusable trigger (default) Delay Time: The default 8S + -30% Board Dimensions: 10 23mm Induction angle: <100 degrees cone angle Sensing distance: 3 meters Working temperature: 20 to +80 degrees Sensor Lens Dimensions: Diameter 10mm Page 1 of 2 www.rapidonline.com PIR Motion Module HC-SR505 Order code: 78-4110 Pa.
