A31-1 - 10 TO 2000 MHz CECASCADABLE AMPLIFIER

Tyco Electronics

Datasheet Details

Part number	A31-1
Manufacturer	Tyco Electronics
File Size	108.83 KB
Description	10 TO 2000 MHz CECASCADABLE AMPLIFIER
Datasheet	A31-1 Datasheet
Additional preview pages of the A31-1 datasheet.

📁 Similar Datasheet

A31 - highly integrated mobile application processor (Allwinner Technology)
A310 - Triode (Philips)
A31004 - Unidirectional Linear Hall-Effect Sensor (Allegro)
A31010 - Low-Power Unidirectional Linear Hall-Effect Sensor (Allegro)
A31101AP - COMPANDER IC (Toshiba Semiconductor)
A31102 - Programmable Linear Hall-IC (Allegro)
A311D - advanced AI application processor (AMLOGIC)
A3121 - HALL-EFFECT SWITCHES FOR HIGH-TEMPERATURE OPERATION (Allegro MicroSystems)
A3122 - HALL-EFFECT SWITCHES FOR HIGH-TEMPERATURE OPERATION (Allegro MicroSystems)
A3123 - HALL-EFFECT SWITCHES FOR HIGH-TEMPERATURE OPERATION (Allegro MicroSystems)

Other Datasheets by Tyco Electronics

Full PDF Text Transcription

Click to expand full text

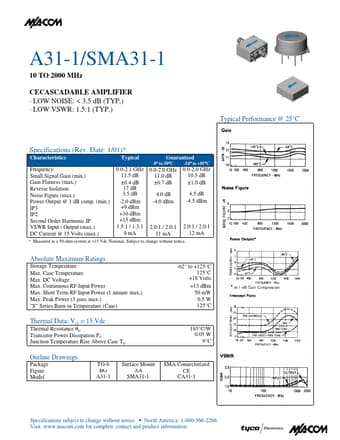

A31-1/SMA31-1 10 TO 2000 MHz CECASCADABLE AMPLIFIER · LOW NOISE: < 3.5 dB (TYP.) · LOW VSWR: 1.5:1 (TYP.) Typical Performance @ 25°C Specifications (Rev. Date: 1/01)* Characteristics Frequency Small Signal Gain (min.) Gain Flatness (max.) Reverse Isolation Noise Figure (max.) Power Output @ 1 dB comp. (min.) IP3 IP2 Second Order Harmonic IP VSWR Input / Output (max.) DC Current @ 15 Volts (max.) Typical 0° to 50°C Guaranteed -54° to +85°C 0.0-2.1 GHz 11.5 dB ±0.4 dB 17 dB 3.5 dB -2.0 dBm +9 dBm +10 dBm +15 dBm 1.5:1 / 1.3:1 9 mA 0.0-2.0 GHz 11.0 dB ±0.7 dB 4.0 dB -4.0 dBm 0.0-2.0 GHz 10.5 dB ±1.0 dB 4.5 dB -4.5 dBm 2.0:1 / 2.0:1 11 mA 2.0:1 / 2.0:1 12 mA * Measured in a 50-ohm system at +15 Vdc Nominal. Subject to change without notice.
