A31004 - Unidirectional Linear Hall-Effect Sensor

Datasheet Summary

New applications for linear output Hall-effect sensors, such as displacement and angular position, require higher accuracy and smaller package sizes.

The Allegro A31004 linear Halleffect sensor IC has been designed specifically to meet both requirements.

3.3 V supply operation.
QVO temperature coefficient programmed at Allegro™ for improved accuracy.
Miniature package options.
High-bandwidth, low-noise analog output.
High-speed chopping scheme minimizes QVO drift across operating temperature range.
Temperature-stable quiescent voltage output and sensitivity.
Precise recoverability after temperature cycling.
Output voltage clamps provide short-circuit diagnostic capabilities.

Allegro

Part number	A31004
Manufacturer	Allegro
File Size	1.23 MB
Description	Unidirectional Linear Hall-Effect Sensor
Datasheet	A31004 Datasheet

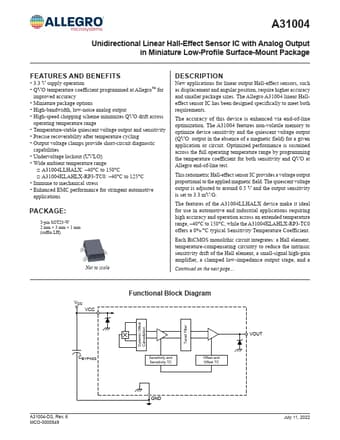

Additional preview pages of the A31004 datasheet.
