A31010 - Low-Power Unidirectional Linear Hall-Effect Sensor

Datasheet Summary

Description

The A31010 family of linear Hall-effect sensor ICs provides a voltage output that is proportional to the applied magnetic field.

The user-controlled sleep pin and rapid wakeup time allows the A31010 to consume minimal power and provide magnetic data quickly after waking up.

Features

  • User-controlled sleep mode with fast (< 60 µs) wakeup time for lag-free power savings.
  • 3.2 mA active and 25 µA sleep current reduces total power consumption and extends battery life.
  • Operates down to 2.5 V supply for battery.

📥 Download Datasheet

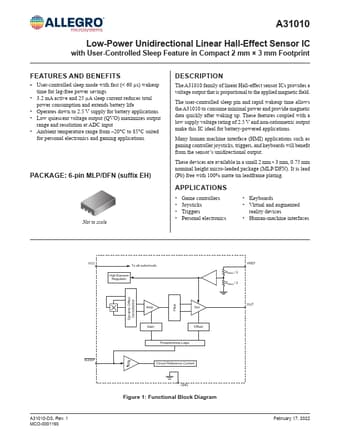

Datasheet preview – A31010

Datasheet Details

Part number A31010
Manufacturer Allegro
File Size 868.33 KB
Description Low-Power Unidirectional Linear Hall-Effect Sensor
Datasheet download datasheet A31010 Datasheet
Additional preview pages of the A31010 datasheet.

📁 Similar Datasheet

  • A310 - Triode (Philips)
  • A31 - highly integrated mobile application processor (Allwinner Technology)
  • A31-1 - 10 TO 2000 MHz CECASCADABLE AMPLIFIER (Tyco Electronics)
  • A31101AP - COMPANDER IC (Toshiba Semiconductor)
  • A311D - advanced AI application processor (AMLOGIC)
  • A3121 - HALL-EFFECT SWITCHES FOR HIGH-TEMPERATURE OPERATION (Allegro MicroSystems)
  • A3122 - HALL-EFFECT SWITCHES FOR HIGH-TEMPERATURE OPERATION (Allegro MicroSystems)
  • A3123 - HALL-EFFECT SWITCHES FOR HIGH-TEMPERATURE OPERATION (Allegro MicroSystems)
  • A3130 - Universal DSP-Based PFC Solution (Alpha Microelectronics)
  • A3131 - Universal DSP-Based PFC Solution (Alpha Microelectronics)
Other Datasheets by Allegro
  • A31004 - Unidirectional Linear Hall-Effect Sensor
  • A31102 - Programmable Linear Hall-IC
  • A31301 - 3D Linear Hall-Effect Sensor
  • A31315 - 3D Magnetic Position Sensor
  • A3132 - Ultrasensitive Bipolar Hall Effect Switches
  • A3133 - Ultrasensitive Bipolar Hall Effect Switches
  • A3163 - Hall Effect Switch
  • A3185 - Protected Quad Driver

Full PDF Text Transcription

Click to expand full text
A31010 Low-Power Unidirectional Linear Hall-Effect Sensor IC with User-Controlled Sleep Feature in Compact 2 mm × 3 mm Footprint FEATURES AND BENEFITS ▪ User-controlled sleep mode with fast (< 60 µs) wakeup time for lag-free power savings • 3.2 mA active and 25 µA sleep current reduces total power consumption and extends battery life • Operates down to 2.5 V supply for battery applications • Low quiescent voltage output (QVO) maximizes output range and resolution at ADC input • Ambient temperature range from –20°C to 85°C suited for personal electronics and gaming applications PACKAGE: 6-pin MLP/DFN (suffix EH) Not to scale DESCRIPTION The A31010 family of linear Hall-effect sensor ICs provides a voltage output that is proportional to the applied magnetic field.
