* s Superior Temp. Stability for Automotive or Industrial Applications s 4.5 V to 24 V Operation … Needs Only An Unregulated Supply s Open-Collector 25 mA Output … Compatible with Digital Logic s Reverse Battery Protection s Activate with Small, Commercially Available Permanent Magnets s Solid-State R
A3123
Allegro MicroSystems
640.85 KB
Hall-effect switches for high-temperature operation.

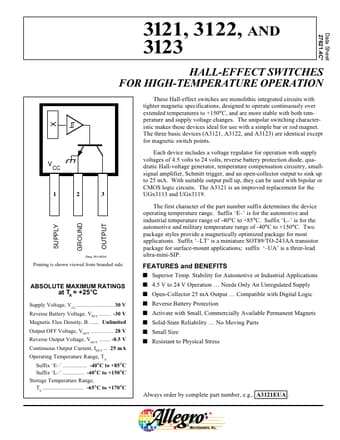

Data Sheet 27621.4C
*
3121, 3122, AND 3123
HALL-EFFECT SWITCHES FOR HIGH-TEMPERATURE OPERATION
X
V
CC
1
2
3
OUTPUT
GROUND
SUPPLY
Dwg. PH.
