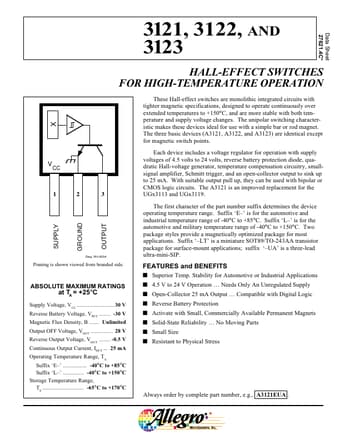

Data Sheet 27621.4C*
3121, 3122, AND 3123
HALL-EFFECT SWITCHES FOR HIGH-TEMPERATURE OPERATION
X
V
CC
1
2
3
OUTPUT
GROUND
SUPPLY
Dwg. PH-003A
Pinning is shown viewed from branded side.
ABSOLUTE MAXIMUM RATINGS
at TA = +25°C
Supply Voltage, V ........................... 30 V CC
Reverse Battery Voltage, VRCC ........ -30 V Magnetic Flux Density, B ....... Unlimited
Output OFF Voltage, VOUT ................ 28 V
Reverse Output Voltage, V ........ -0.5 V OUT
Continuous Output Current, IOUT ... 25 mA
Operating Temperature Range, TA Suffix ‘E–’ ................. -40°C to +85°C
Suffix ‘L–’ ............... -40°C to +150°C
Storage Temperature Range,
T ..............................
