AM42-0002 - GaAs MMIC VSAT Power Amplifier

Product Overview

Tyco Electronics

Part number	AM42-0002
Manufacturer	Tyco Electronics
File Size	162.48 KB
Description	GaAs MMIC VSAT Power Amplifier
Datasheet	AM42-0002 Datasheet

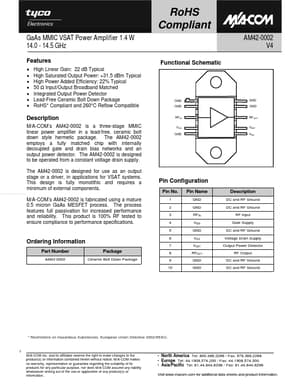

Additional preview pages of the AM42-0002 datasheet.

M/A-COM’s AM42-0002 is a three-stage MMIC linear power amplifier in a lead-free, ceramic bolt down style hermetic package.

High Linear Gain: 22 dB Typical High Saturated Output Power: +31.5 dBm Typical High Power Added Efficiency: 22% Typical 50 Ω Input/Output Broadband Matched Integrated Output Power Detector Lead-Free Ceramic Bolt Down Package RoHS.
Compliant and 260°C Reflow Compatible AM42-0002 V4 Functional Schematic GND GND RFIN VGG GND GND GND RFOUT VDET VDD.
