AM42-0007 - GaAs MMIC VSAT Power Amplifier 2.0W 14.0 - 14.5 GHz

Product Overview

Tyco Electronics

Part number	AM42-0007
Manufacturer	Tyco Electronics
File Size	39.19 KB
Description	GaAs MMIC VSAT Power Amplifier 2.0W 14.0 - 14.5 GHz
Datasheet	AM42-0007 Datasheet

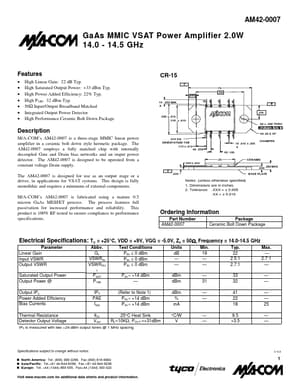

Additional preview pages of the AM42-0007 datasheet.

M/A-COM’s AM42-0007 is a three-stage MMIC linear power amplifier in a ceramic bolt down style hermetic package.

High Linear Gain: 22 dB Typ. High Saturated Output Power: +33 dBm Typ. High Power Added Efficiency: 22% Typ. High P1dB: 32 dBm Typ. 50Ω=Input/Output Broadband Matched Integrated Output Power Detector High Performance Ceramic Bolt Down Package CR-15 -C .70 .530 .085 10 .050 MIN. X 10 9 8 7 6 -B.159 .328 ± .010 .318 ± .010 2X o .096 THRU o.004 M A B C 1 2 3 4 5.
