ESSM-2-7-75 - E-Series 2-Way 0 Power Divider 40 - 1000 MHz

Tyco Electronics

Datasheet Details

Part number	ESSM-2-7-75
Manufacturer	Tyco Electronics
File Size	45.48 KB
Description	E-Series 2-Way 0 Power Divider 40 - 1000 MHz
Datasheet	ESSM-2-7-75_TycoElectronics.pdf

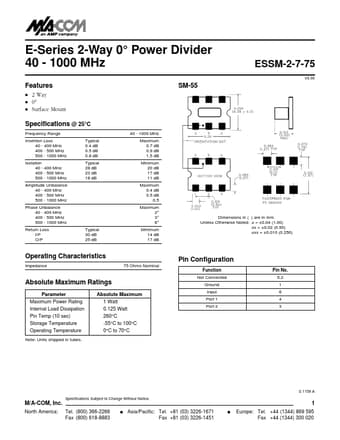

q q q ESSM-2-7-75 V3.00 SM-55 2 Way 0° Surface Mount Speciﬁcations @ 25°C Frequency Range Insertion Loss 40 - 400 MHz 400 - 500 MHz 500 - 1000 MHz Isolation 40 - 400 MHz 400 - 500 MHz 500 - 1000 MHz Amplitude Unbalance 40 - 400 MHz 400 - 500 MHz 500 - 1000 MHz Phase Unbalance 40 - 400 MHz 400 - 500 MHz 500 - 1000 MHz Return Loss I/P O/P Typical 30 dB 25 dB Typical 0.4 dB 0.5 dB 0.8 dB Typical 28 dB 23 dB 18 dB 40 - 1000 MHz Maximum 0.7 dB 0.9 dB 1.5 dB Minimum 20 dB 17 dB 11 dB Maximum 0.4 d.
