FR11 - Single Junction Drop-In Circulator

Datasheet Summary

Description

M/A COM’s drop-in circulators and isolators, designed for Wireless base station and power amplifier applications, feature high reliability performance at a low cost.

These designs feature a low cost package ideally suited for high volume manufacturing.

Features

  • 20dB Isolation 0.35dB Insertion Loss Low cost package Custom products available with alternative configurations such as couplers, attenuators, high power termination and reverse circulation. FR11 Series V8 Outline Drawing.

📥 Download Datasheet

Datasheet preview – FR11

Datasheet Details

Part number FR11
Manufacturer Tyco Electronics
File Size 66.43 KB
Description Single Junction Drop-In Circulator
Datasheet download datasheet FR11 Datasheet
Additional preview pages of the FR11 datasheet.

📁 Similar Datasheet

  • FR110 - 1A Leaded Type Fast Rectifiers (CITC)
  • FR1101F - Series Right Angle AlInGaP SMT LED (Stanley)
  • FR1105W - Dome Lens Type AllnGaP SMT LED (Stanley)
  • FR1111C - Ultra Compact AllnGaP SMT LED (Stanley)
  • FR1112C - Single Color High Brightness LED (STANLEY ELECTRIC)
  • FR1112H - Thin Type AllnGaP SMT LED (Stanley)
  • FR1117 - LOW DROP FIXED AND ADJUSTABLE POSITIVE VOLTAGE REGULATOR (First Silicon)
  • FR1117 - 1A Low Dropout Linear Regulator (fitipower)
  • FR115 - Silicon Full Wave Rectifiers (Punjab Wireless Systems)
  • FR1000BW - REVERSE CONDUCTING THYRISTORS (PST)
Other Datasheets by Tyco Electronics

Full PDF Text Transcription

Click to expand full text

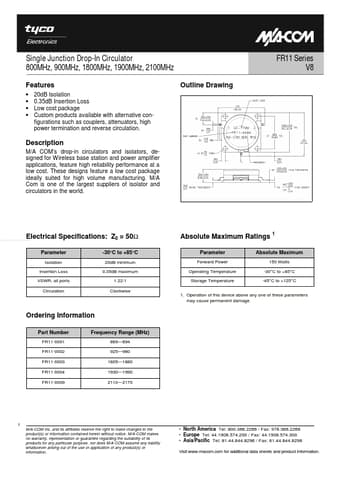

Single Junction Drop-In Circulator 800MHz, 900MHz, 1800MHz, 1900MHz, 2100MHz Features • • • • 20dB Isolation 0.35dB Insertion Loss Low cost package Custom products available with alternative configurations such as couplers, attenuators, high power termination and reverse circulation. FR11 Series V8 Outline Drawing Description M/A COM’s drop-in circulators and isolators, designed for Wireless base station and power amplifier applications, feature high reliability performance at a low cost. These designs feature a low cost package ideally suited for high volume manufacturing. M/A Com is one of the largest suppliers of isolator and circulators in the world. www.DataSheet4U.
