JW050A

Power Modules

JW050A Features

* s Small size: 61.0 mm x 57.9 mm x 12.7 mm (2.40 in. x 2.28 in. x 0.50 in.) High power density High efficiency: 84% typical Low output noise Constant frequency Industry-standard pinout Metal baseplate 2:1 input voltage range Overtemperature protection (100 W and 150 W only) Overcurrent and overvoltag

JW050A General Description

The JW050A, JW075A, JW100A, and JW150A Power Modules are dc-dc converters that operate over an input voltage range of 36 Vdc to 75 Vdc and provide a precisely regulated dc output. The outputs are fully isolated from the inputs, allowing versatile polarity configurations and grounding connections. The.

JW050A Datasheet (633.94 KB)

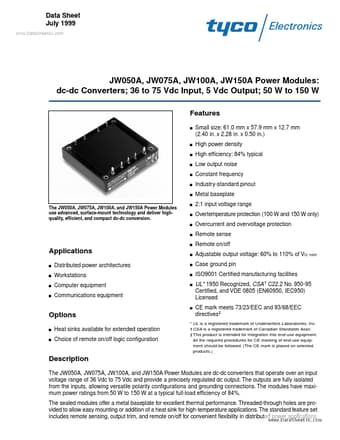

Preview of JW050A PDF

Datasheet Details

Part number:

JW050A

Manufacturer:

Tyco Electronics

File Size:

633.94 KB

Description:

Power modules.
Data Sheet July 1999 www.DataSheet4U.com JW050A, JW075A, JW100A, JW150A Power Modules: dc-dc Converters; 36 to 75 Vdc Input, 5 Vdc Output; 50 W to 15.
