JW075A Power Modules

The JW050A, JW075A, JW100A, and JW150A Power Modules are dc-dc converters that operate over an input voltage range of 36 Vdc to 75 Vdc and provide a precisely regulated dc output. The outputs are fully isolated from the inputs, allowing versatile polarity configurations and grounding connections. The.

JW075A Features

* s Small size: 61.0 mm x 57.9 mm x 12.7 mm (2.40 in. x 2.28 in. x 0.50 in.) High power density High efficiency: 84% typical Low output noise Constant frequency Industry-standard pinout Metal baseplate 2:1 input voltage range Overtemperature protection (100 W and 150 W only) Overcurrent and overvoltag

JW050A_TycoElectronics.pdf

This datasheet PDF includes multiple part numbers: JW075A, JW050A. Please refer to the document for exact specifications by model.

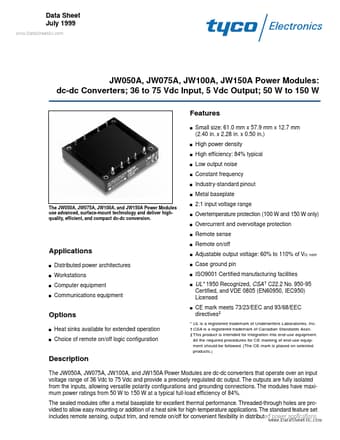

JW075A Datasheet Preview Page 2 JW075A Datasheet Preview Page 3

Datasheet Details

Part number:

JW075A, JW050A

Manufacturer:

Tyco Electronics

File Size:

633.94 KB

Description:

Power modules.

Note:

This datasheet PDF includes multiple part numbers: JW075A, JW050A.
Please refer to the document for exact specifications by model.
