MAAMSS00014 - Broadband Driver Amplifier

Description

M/A-COM’s MAAMSS0014 RF driver amplifier is a GaAs MMIC which exhibits excellent ACPR performance as well as high gain and low power consumption in a low-cost SOT-89 surface mount plastic package.

Features

  • Low Cost Plastic SOT-89 Package Broadband Operation 18 dBm Pout at.
  • 50 dBc ACPR 24 dBm P1dB MAAMSS0014 V3 Functional Schematic.

📥 Download Datasheet

Datasheet preview – MAAMSS00014

Datasheet Details

Part number MAAMSS00014
Manufacturer Tyco Electronics
File Size 265.91 KB
Description Broadband Driver Amplifier
Datasheet download datasheet MAAMSS00014 Datasheet

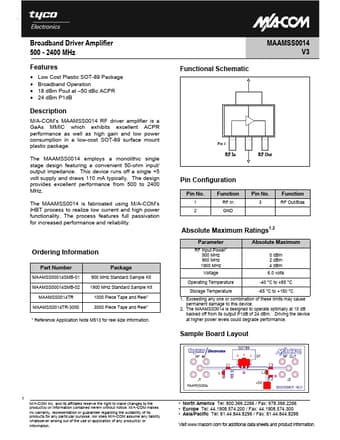

Additional preview pages of the MAAMSS00014 datasheet.

📁 Similar Datasheet

  • MAAMSS0006 - High Dynamic Range GaAs HBT Amplifier / 50 - 450 MHz (Tyco)
  • MAAMSS0007 - High Dynamic Range GaAs Amplifier / 800 - 2500 MHz (Tyco)
  • MAAMSS0017 - Broadband IF Driver Amplifier 50 - 450 MHz (Tyco)
  • MAAMSS0044 - Push Pull CATV Amplifier (MA-COM)
  • MAAMSS0060 - Broadband CATV Amplifier (MA-COM)
  • MAAM-007239 - Broadband CATV Single Ended 3-Way Active Splitter (MA-COM)
  • MAAM-007805 - Broadband CATV Single Ended 2-Way Active Splitter (MACOM)
  • MAAM-007807 - Broadband CATV Amplifier (MACOM)
  • MAAM-007866-0P1R00 - Broadband Driver Amplifier (MACOM)
  • MAAM-008200 - Cascadable Amplifier (MA-COM)
Other Datasheets by Tyco Electronics

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com Broadband Driver Amplifier 500 - 2400 MHz Features • • • • Low Cost Plastic SOT-89 Package Broadband Operation 18 dBm Pout at –50 dBc ACPR 24 dBm P1dB MAAMSS0014 V3 Functional Schematic Description M/A-COM’s MAAMSS0014 RF driver amplifier is a GaAs MMIC which exhibits excellent ACPR performance as well as high gain and low power consumption in a low-cost SOT-89 surface mount plastic package. The MAAMSS0014 employs a monolithic single stage design featuring a convenient 50-ohm input/ output impedance. This device runs off a single +5 volt supply and draws 110 mA typically. The design provides excellent performance from 500 to 2400 MHz. The MAAMSS0014 is fabricated using M/A-COM’s iHBT process to realize low current and high power functionality.
