MACP-008125-CK07F0, Broadband CATV

www.DataSheet4U.com RoHS Compliant Broadband CATV, Coupler 5-1000MHz .
M/A-COM’s MACP-008125-CK07F0 is a high performance 75 Ohm Coupler, in a SM-55 low cost, surface mount package.

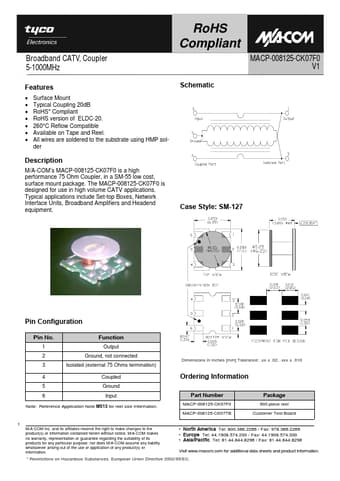

datasheet Preview Page 1 from Datasheet4u.com

MACP-008125-CK07F0_TycoElectronics.pdf

MACP-008125-CK07F0 Datasheet Preview — Preview of MACP-008125-CK07F0 PDF

Datasheet Details

Part number:

MACP-008125-CK07F0

Manufacturer:

Tyco Electronics

File Size:

136.81 KB

Description:

Broadband CATV

Features

* Surface Mount Typical Coupling 20dB RoHS
* Compliant RoHS version of ELDC-20. 260°C Reflow Compatible Available on Tape and Reel. All wires are soldered to the substrate using HMP solder MACP-008125-CK07F0 V1 Schematic Descri

Applications

* Typical applications include Set-top Boxes, Network Interface Units, Broadband Amplifiers and Headend equipment. Case Style: SM-127 Pin Configuration Pin No. 1 2 3 4 5 6 Function Output Ground, not connected Isolated (external 75 Ohms termination) Coupled Ground Input Part Number MACP-008125-CK0
