MACP-009011-C80370 E-Series 75 Ohm 8 dB Coupler 5 - 1200 MHz .
M/A-COM’s MACP-009011-C80370 is a high performance 75 Ohm Coupler, in a SM-55A low cost, surface mount package.

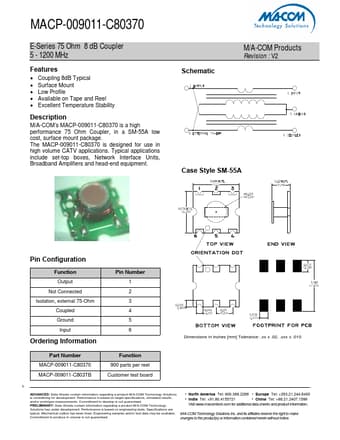

datasheet Preview Page 1 from Datasheet4u.com

MACP-009011-C80370-MA-COM.pdf

MACP-009011-C80370 Datasheet Preview — This datasheet PDF includes multiple part numbers: MACP-009011-C80370, MACP-009011-C80370-MA. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MACP-009011-C80370, MACP-009011-C80370-MA

Manufacturer:

MA-COM

File Size:

93.81 KB

Description:

Coupler

Note:

This datasheet PDF includes multiple part numbers: MACP-009011-C80370, MACP-009011-C80370-MA.
Please refer to the document for exact specifications by model.

Features

* Coupling 8dB Typical
* Surface Mount
* Low Profile
* Available on Tape and Reel

Applications

* Typical applications include set-top boxes, Network Interface Units, Broadband Amplifiers and head-end equipment. Schematic M/A-COM Products Revision : V2 Case Style SM-55A Pin Configuration Function Output Not Connected Isolation, external 75-Ohm Coupled Ground Input Ordering Information Pin
