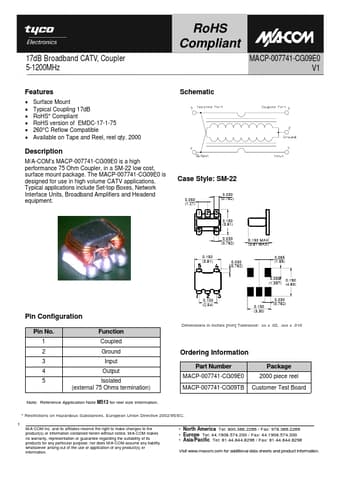

MACP-007741-CG09E0 Datasheet, Catv, Tyco Electronics

MACP-007741-CG09E0 Features

• Catv
• Surface Mount Typical Coupling 17dB RoHS
• Compliant RoHS version of EMDC-17-1-75 260°C Reflow Compatible Available on

PDF File Details

Part number:

MACP-007741-CG09E0

Manufacturer:

Tyco Electronics

File Size:

116.72kb

Download:

📄 Datasheet

Description:

Broadband catv. M/A-COM’s MACP-007741-CG09E0 is a high performance 75 Ohm Coupler, in a SM-22 low cost, surface mount package. The MACP-007741-CG09E0

MACP-007741-CG09E0 Application

• Applications Typical applications include Set-top Boxes, Network Interface Units, Broadband Amplifiers and Headend equipment. Case Style: SM-22 0.
