MACP-007727-CI07B0 Datasheet, Catv, Tyco Electronics

MACP-007727-CI07B0 Features

  • Catv
  • Surface mount Typical coupling +18dB 260°C reflow compatible RoHS
  • compliant Available on tape and reel, reel quantity 1000 MA

PDF File Details

Part number:

MACP-007727-CI07B0

Manufacturer:

Tyco Electronics

File Size:

101.88kb

Download:

📄 Datasheet

Description:

Broadband catv. M/A-COM’s MACP-007727-CI07B0 is an 18dB broadband coupler in a low cost, surface mount package. It offers low loss, good isolation, g

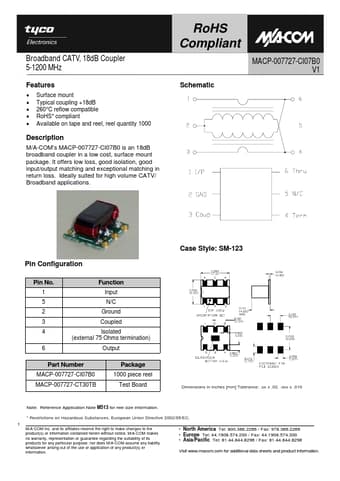

Datasheet Preview: MACP-007727-CI07B0 📥 Download PDF (101.88kb)
Page 2 of MACP-007727-CI07B0 Page 3 of MACP-007727-CI07B0

MACP-007727-CI07B0 Application

  • Applications Case Style: SM-123 Pin Configuration Pin No. 1 5 2 3 4 6 Function Input N/C Ground Coupled Isolated (external 75 Ohms termination) Ou
