MACP-008311-CE0370 Datasheet - Tyco Electronics

MACP-008311-CE0370, Coupler

www.DataSheet4U.com RoHS Compliant 14 dB Coupler 5-1000MHz .
M/A-COM’s MACP-008311-CE0370 is a high performance 75 Ohm Coupler, in an SM-55 low cost, surface mount package.

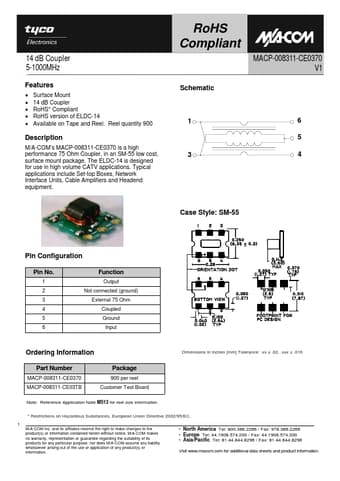

datasheet Preview Page 1 from Datasheet4u.com

MACP-008311-CE0370_TycoElectronics.pdf

MACP-008311-CE0370 Datasheet Preview — Preview of MACP-008311-CE0370 PDF

Datasheet Details

Part number:

MACP-008311-CE0370

Manufacturer:

Tyco Electronics

File Size:

215.48 KB

Description:

Coupler

Features

* Surface Mount 14 dB Coupler RoHS

Applications

* Typical applications include Set-top Boxes, Network Interface Units, Cable Amplifiers and Headend equipment. 3 4 Case Style: SM-55 Pin Configuration Pin No. 1 2 3 4 5 6 Function Output Not connected (ground) External 75 Ohm Coupled Ground Input Ordering Information Part Number MACP-008311-CE0
