SW-338 Datasheet, Switch, Tyco Electronics

SW-338 Features

• Switch q q q SO-8 PIN 8 .1497-.1574 (3.80-4.00) -B.2284-.2440 (5.80-6.20) .010(0.25) M B M q q q q q Very Low Power Consumption: 75 µW Low Insertion Loss: 0.5 dB High Isolation: 33 dB up t

PDF File Details

Part number:

SW-338

Manufacturer:

Tyco Electronics

File Size:

121.35kb

Download:

📄 Datasheet

Description:

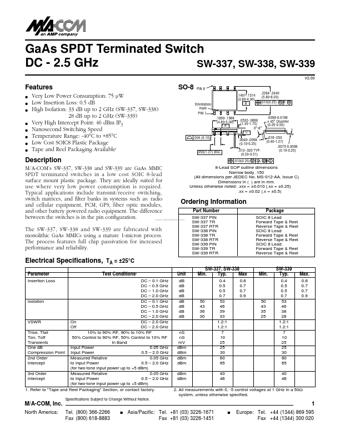

Gaas spdt terminated switch. .010(0.25) M C A M B S 8-Lead SOP outline dimensions M/A-COM’s SW-337, SW-338 and SW-339 are GaAs MMIC Narrow body .150 SPDT termin

SW-338 Application

• Applications include transmit/receive switching, switch matrices, and filter banks in systems such as: radio Ordering Information and cellular equipm
