SW-313-PIN Datasheet, Switch, MA-COM

SW-313-PIN Features

• Switch
• Integral TTL Driver
• Low DC Power Consumption
• Fast Switching Speed: 7 ns Typical
• Hermetic Surface Mount Package
• 50 Ohm Nominal Impedance

PDF File Details

Part number:

SW-313-PIN

Manufacturer:

MA-COM

File Size:

531.98kb

Download:

📄 Datasheet

Description:

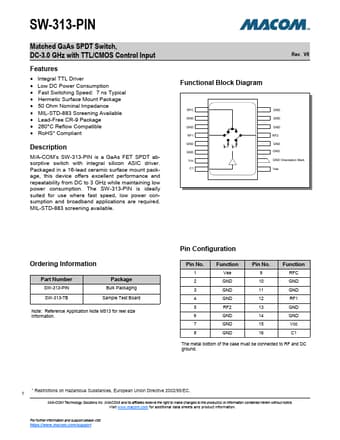

Matched gaas spdt switch. M/A-COM’s SW-313-PIN is a GaAs FET SPDT absorptive switch with integral silicon ASIC driver. Packaged in a 16-lead ceramic surface mo

SW-313-PIN Application

• Applications are required. MIL-STD-883 screening available. Rev. V6 Functional Block Diagram RFC GND GND RF1 GND GND Vcc C1 GND GND GND RF2 GND
