SW-415-PIN - Matched GaAs SP4T Switch

Tyco Electronics

📥 Download Datasheet

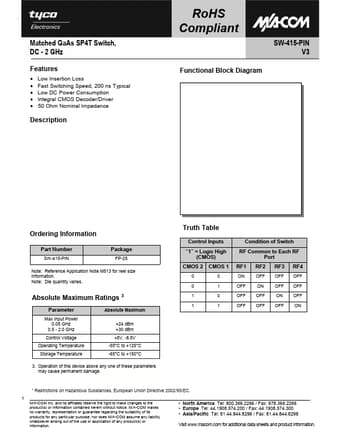

SW-415-PIN Datasheet Preview — Preview of SW-415-PIN PDF

Datasheet Details

Part number: SW-415-PIN
Manufacturer: Tyco Electronics
File Size: 131.11 KB
Datasheet: SW-415-PIN_TycoElectronics.pdf
Description: Matched GaAs SP4T Switch

SW-415-PIN Product details

Description

Ordering Information Part Number SW-415-PIN Truth Table Control Inputs Package FP-25 Condition of Switch RF Common to Each RF Port RF1 ON OFF OFF OFF “1” = Logic High (CMOS) CMOS 2 CMOS 1 0 1 0 1 RF2 OFF ON OFF OFF RF3 OFF OFF ON OFF RF4 OFF OFF OFF ON Note: Reference Application Note M513 for reel size information.Note: Die quantity varies.0 0 Absolute Maximum Ratings 3 Parameter Max Input Power 0.05 GHz 0.5 - 2.0 GHz Control Voltage Operating Temperature Storage Temperature Absolut

Features

Low Insertion Loss Fast Switching Speed, 200 ns Typical Low DC Power Consumption Integral CMOS Decoder/Driver 50 Ohm Nominal Impedance.
