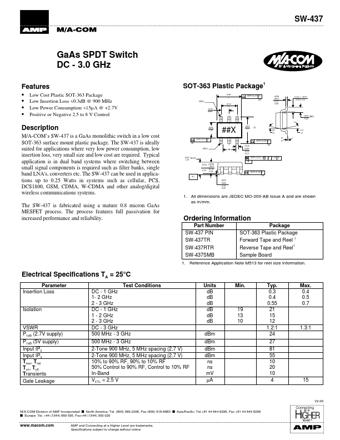

SW-437 Datasheet, Switch, Tyco Electronics

SW-437 Features

• Switch
• Low Cost Plastic SOT-363 Package Low Insertion Loss <0.3dB @ 900 MHz Low Power Consumption <15µA @ +2.7V Positive or Negative 2.5 to 8 V Control

PDF File Details

Part number:

SW-437

Manufacturer:

Tyco Electronics

File Size:

123.88kb

Download:

📄 Datasheet

Description:

Gaas spdt switch. M/A-COM’s SW-437 is a GaAs monolithic switch in a low cost SOT-363 surface mount plastic package. The SW-437 is ideally suited for ap

SW-437 Application

• Applications where very low power consumption, low insertion loss, very small size and low cost are required. Typical application is in dual band sy
