SW-456 Datasheet, Switch, Tyco Electronics

SW-456 Features

• Switch n n n n SW-456 Functional Schematic Positive Control Voltage PIN 1 RF1 1000 pF GND RFC 1000 pF RF2 1000 pF V2 V1 Low Cost Plastic SC-70 (SOT-363) Package Low Insertion Loss < 0.3 dB

PDF File Details

Part number:

SW-456

Manufacturer:

Tyco Electronics

File Size:

155.80kb

Download:

📄 Datasheet

Description:

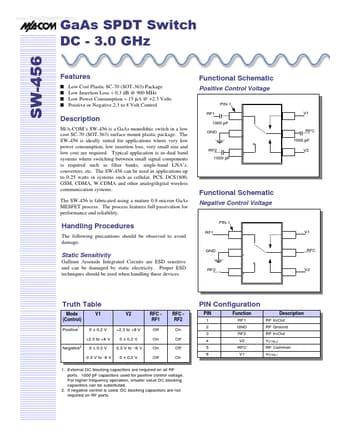

Gaas spdt switch. M/A-COM’s SW-456 is a GaAs monolithic switch in a low cost SC-70 (SOT-363) surface mount plastic package. The SW-456 is ideally suite

SW-456 Application

• Applications where very low power consumption, low insertion loss, very small size and low cost are required. Typical application is in dual band sy
