SW-475 Datasheet, Switch, Tyco Electronics

SW-475 Features

  • Switch n Positive Voltage Control (0 / +5 V) n High Isolation (53 dB typ. @ 0.9 GHz, 50 dB typ @ 1.9 GHz) n 50-Ohm Internal Terminations n Low Insertion Loss (0.6 dB typ. @ 0.9 GHz, 0.7 dB ty

PDF File Details

Part number:

SW-475

Manufacturer:

Tyco Electronics

File Size:

121.01kb

Download:

📄 Datasheet

Description:

Spdt high isolation terminated switch. The M/A-COM SW-475 GaAs monolithic switch provides high isolation in a low-cost, plastic surface mount package. The SW -475 is ideal

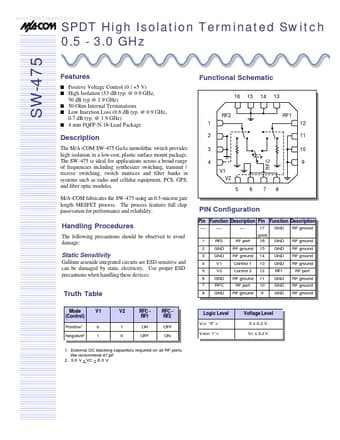

Datasheet Preview: SW-475 📥 Download PDF (121.01kb)
Page 2 of SW-475 Page 3 of SW-475

SW-475 Application

  • Applications across a broad range of frequencies including synthesizer switching, transmit / receive switching, switch matrices and filter banks in
