SW90-0001 Datasheet, Switch, Tyco Electronics

SW90-0001 Features

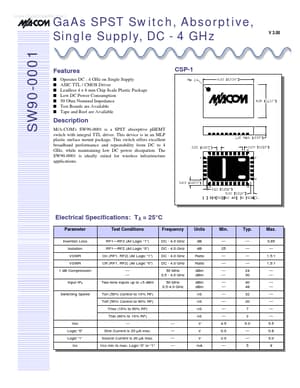

• Switch n n n n n n n V 3.00 SW90-0001 CSP-1 Operates DC - 4 GHz on Single Supply ASIC TTL / CMOS Driver Leadless 4 x 6 mm Chip Scale Plastic Package Low DC Power Consumption 50 Ohm Nominal

PDF File Details

Part number:

SW90-0001

Manufacturer:

Tyco Electronics

File Size:

266.01kb

Download:

📄 Datasheet

Description:

Gaas spst switch. M/A-COM's SW90-0001 is a SPST absorptive pHEMT switch with integral TTL driver. This device is in an MLP plastic surface mount packag

SW90-0001 Application

• Applications Electrical Specifications: TA = 25°C Parameter Insertion Loss Isolation VSWR VSWR 1 dB Compression Input IP3 Switching Speed Test Con
