SW90-0004 Datasheet, Switch, Tyco Electronics

SW90-0004 Features

• Switch CSP-2 V 5.00 SW90-0004 n n n n n n n Operates DC - 4 GHz on Single Supply ASIC TTL / CMOS Driver Leadless 4 x 7 mm Chip Scale Plastic Package Low DC Power Consumption 50 Ohm Nominal

PDF File Details

Part number:

SW90-0004

Manufacturer:

Tyco Electronics

File Size:

281.22kb

Download:

📄 Datasheet

Description:

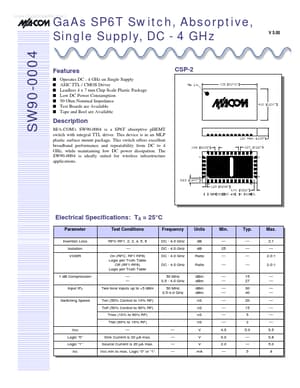

Gaas sp6t switch. M/A-COM's SW90-0004 is a SP6T absorptive pHEMT switch with integral TTL driver. This device is in an MLP plastic surface mount packag

SW90-0004 Application

• Applications Electrical Specifications: TA = 25°C Parameter Insertion Loss Isolation VSWR Test Conditions RFC-RF1, 2, 3, 4, 5, 6
    –
