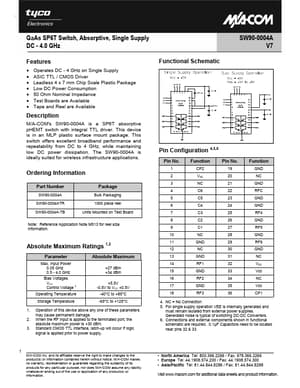

datasheet Preview Page 1 from Datasheet4u.com

SW90-0004A GaAs SP6T Switch

www.DataSheet4U.com GaAs SP6T Switch, Absorptive, Single Supply DC - 4.0 GHz .
M/A-COM's SW90-0004A is a SP6T absorptive pHEMT switch with integral TTL driver.

SW90-0004A_TycoElectronics.pdf

SW90-0004A Datasheet Preview — Preview of SW90-0004A PDF

Datasheet Details

Part number:

SW90-0004A

Manufacturer:

Tyco Electronics

File Size:

205.09 KB

Description:

GaAs SP6T Switch

Features

* Operates DC - 4 GHz on Single Supply ASIC TTL / CMOS Driver Leadless 4 x 7 mm Chip Scale Plastic Package Low DC Power Consumption 50 Ohm Nominal Impedance Test Boards are Available Tape and Reel are Available SW90-0004A V7 Functi

Applications

* Pin Configuration 4,5,6 Pin No. 1 2 Function CP2 VEE NC C6 C5 C4 C3 C2 C1 NC GND NC GND RF1 GND RF2 GND RF3 Pin No. 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 Function GND NC GND RFC GND GND RF4 GND RF5 GND RF6 GND NC VEE Vcc NC Vcc CP1 Ordering Information Part Number SW90-0004A SW
