MAAM26100 Datasheet, 2-6.5ghz, Tyco

MAAM26100 Features

  • 2-6.5ghz
  • Saturated Power: 30.5 dBm Typical
  • Gain: 19 dB Typical
  • Power Added Efficiency: 30%
  • On-Chip Bias Network
  • DC Decoupled RF Input and Output

PDF File Details

Part number:

MAAM26100

Manufacturer:

Tyco

File Size:

748.81kb

Download:

📄 Datasheet

Description:

Power gaas mmic amplifier 2-6.5ghz. The MAAM26100 is a GaAs MMIC two stage high efficiency power amplifier. The MAAM26100 is a fully monolithic design which eliminates t

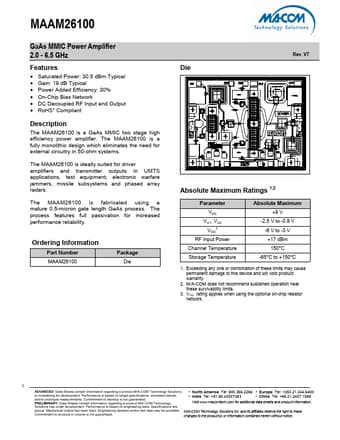

Datasheet Preview: MAAM26100 📥 Download PDF (748.81kb)
Page 2 of MAAM26100 Page 3 of MAAM26100

MAAM26100 Application

  • Applications test equipment, electronic warfare jammers, missile subsystems and phased array radars. The MAAM26100 is fabricated using a mature 0.5
