MASWSS0017

2V Dual-Mode WCDMA & Triple Band GSM/DCS/PCS Switch 0.5 - 2.2 GHz

MASWSS0017 Datasheet (51.54 KB)

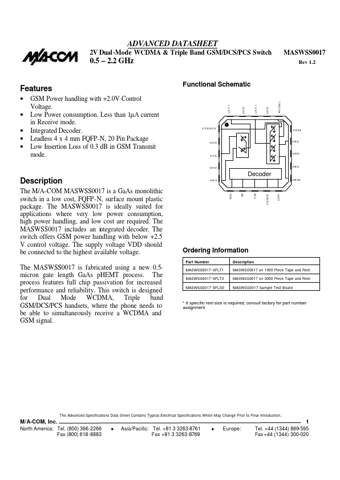

Preview of MASWSS0017 PDF Datasheet

Datasheet Details

Part number:

MASWSS0017

Manufacturer:

Tyco

File Size:

51.54 KB

Description:

2v dual-mode wcdma & triple band gsm/dcs/pcs switch 0.5 - 2.2 ghz

MASWSS0017 Features

* GSM Power handling with +2.0V Control Voltage. Low Power consumption. Less than 1µA current in Receive mode. Integrated Decoder. Leadless 4 x 4 mm FQFP-N, 20 Pin Package Low Insertion Loss of 0.3 dB in GSM Transmit mode. GND PTX/DTX GND PRXS GND

MASWSS0017 General Description

The M/A-COM MASWSS0017 is a GaAs monolithic switch in a low cost, FQFP-N, surface mount plastic package. The MASWSS0017 is ideally suited for applications where very low power consumption, high power handling, and low cost are required. The MASWSS0017 includes an integrated decoder. The switch offer.
