MASWSS0005 Datasheet, Switch, Tyco Electronics

MASWSS0005 Features

• Switch
• Low Insertion Loss: 0.35 dB @ 2.4 GHz Moderate Isolation: 21 dB @ 2.4 GHz Low Current Consumption: 5 µA @ 2.5 V Low Cost Plastic SOT-26 Package

PDF File Details

Part number:

MASWSS0005

Manufacturer:

Tyco Electronics

File Size:

204.44kb

Download:

📄 Datasheet

Description:

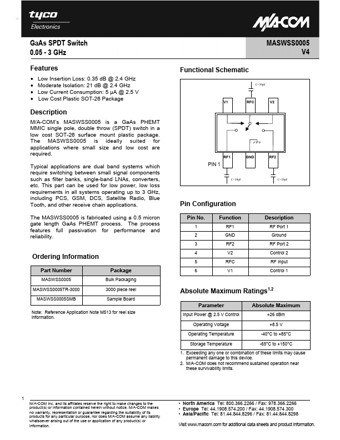

Gaas spdt switch. M/A-COM’s MASWSS0005 is a GaAs PHEMT MMIC single pole, double throw (SPDT) switch in a low cost SOT-26 surface mount plastic package.

MASWSS0005 Application

• Applications where small size and low cost are required. Typical applications are dual band systems which require switching between small signal com
