MASWSS0029, GaAs SPDT 2.8 V High Power Switch

www.DataSheet4U.com GaAs SPDT 2.8 V High Power Switch DC - 3.0 GHz .
M/A-COM’s MASWSS0029 is a GaAs PHEMT MMIC single pole double throw (SPDT) high power switch in a low cost SOT-26 package.

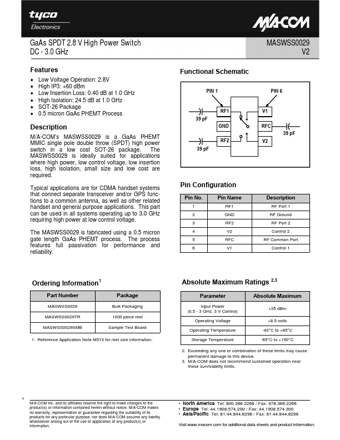

datasheet Preview Page 1 from Datasheet4u.com

MASWSS0029_TycoElectronics.pdf

MASWSS0029 Datasheet Preview — Preview of MASWSS0029 PDF

Datasheet Details

Part number:

MASWSS0029

Manufacturer:

Tyco Electronics

File Size:

145.43 KB

Description:

GaAs SPDT 2.8 V High Power Switch

Features

* Low Voltage Operation: 2.8V High IP3: +60 dBm Low Insertion Loss: 0.40 dB at 1.0 GHz High Isolation: 24.5 dB at 1.0 GHz SOT-26 Package 0.5 micron GaAs PHEMT Process MASWSS0029 V2 Functional Schematic PIN 1 PIN 6 RF1 39 pF GND RF2 39 pF V

Applications

* where high power, low control voltage, low insertion loss, high isolation, small size and low cost are required. Typical applications are for CDMA handset systems that connect separate transceiver and/or GPS functions to a common antenna, as well as other related handset and general purpose applicat
